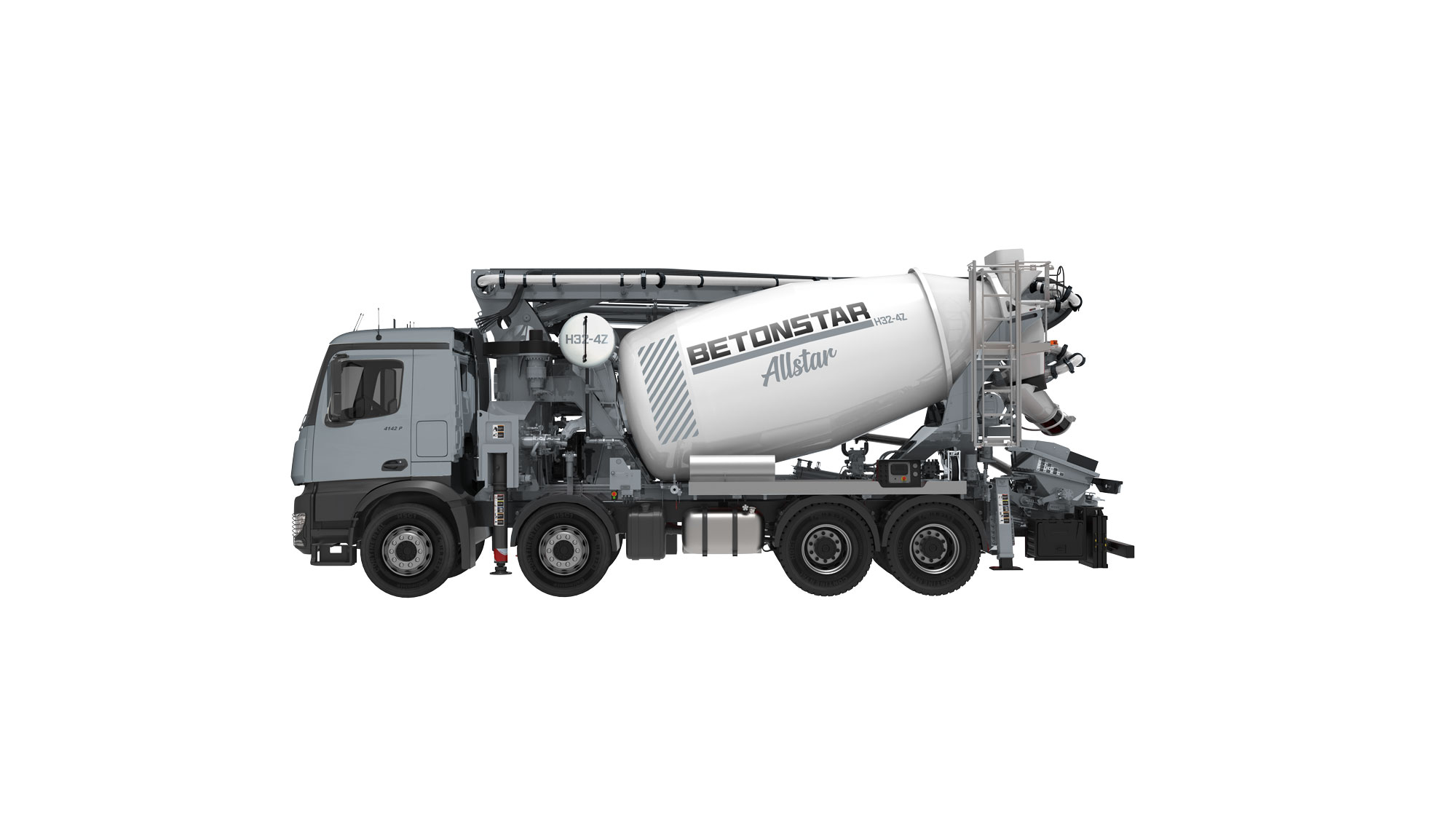

AS 32.70 4Z
|
PUMP GROUP |
Standard |
|
Theo. Conc. Output (max) (Piston Side) |
70 m³/ h |
|
Theo. Conc. Pressure (max) (Piston Side) |
81 bar |
|
Stroke |
28 Stroke / min |
|
Concrete Cylinder Dimensions |
230 mm x 1000 mm |
■ Smartstar Control
■ Color LCD
■ Rear Keyboard
■ Diagnostic
■ Fuel Saving Mode
■ Hopper Vibrator
■ Hydraulic Driven Fan
■ Stability Control
■ Air Compressor
■ End Hose Squeeze Valve
■ High Pressure Cleaning Kit (140 bar)
■ Betonstar IoT System
■ Remote Control (HBC)
■ Auto Unfolding
■ Water and Oil Tank Heater
■ Water Pump (Hydraulic Operated)
Hopper Capacity : 450 l
Switching System : Elect. Magn. Sensor
Concrete Valve : S Valve System
Electric Box : Waterproof and PLC Controlled
Remote Control : Included (HETRONIC)
End Hose : 3 m
Water Tank Capacity : 500 l and Hose 15 m (Pressure Tank)
Lubrication System : Hydraulic (LINCOLN)
Driven by : PTO or Gear Box
Front Legs : X
Rear Legs : Fixed
Nominal Capacity : 9 m³
Drum Speed : 1-13 rpm
Filling Ratio : 73 %
Boom Type : 4Z
Sections : 4
Boom Swing Time : 104 sec
Boom Swinging Angle : 365°
Concrete Pipe Diameter : 100 mm
Pump Group AS 32.70 4Z
|
Theo. Conc. Output (max) (Piston Side) |
70 m³ / h (91,55 yd³ / h) |
|
Theo. Conc. Pressure (max) (Piston Side) |
81 bar (1147,80 psi) |
|
Stroke |
28 Stroke / min |
|
Concrete Cylinder Dimensions |
230 mm x 1000 mm (9,05’’ x 39,37’’) |
■ Smartstar Control
■ Color LCD
■ Rear Keyboard
■ Diagnostic
■ Fuel Saving Mode
■ Hopper Vibrator
■ Hydraulic Driven Fan
■ Stability Control
■ Air Compressor
■ End Hose Squeeze Valve
■ High Pressure Cleaning Kit (135 bar / 1958 psi)
■ Betonstar IoT System
■ Remote Control (HBC)
■ Auto Unfolding
■ Water and Oil Tank Heater
■ Water Pump Hydraulic Operated
Hopper Capacity : 450 l (118,87 gal)
Switching System : Elect. Magn. Sensor
Concrete Valve : S Valve System
Electric Box : Waterproof and PLC Controlled
Remote Control : Included (HETRONIC)
End Hose : 3 m (9’10’’)
Water Tank Capacity : 500 l (132,08 gal) and Hose 15 m (49’ 2’’) (Pressure Tank)
Lubrication System : Hydraulic (LINCOLN)
Driven by : Gear Box
Front Legs : X
Rear Legs : Fixed
Nominal Capacity : 9 m³ (11,77 yd³)
Drum Speed : 1-13 rpm
Filling Ratio : 73%
Boom Type : 4Z
Sections : 4
Boom Swing Speed : 116 sec
Boom Swinging Angle : 365°
Concrete Pipe Diameter : 100 mm (4’’)
