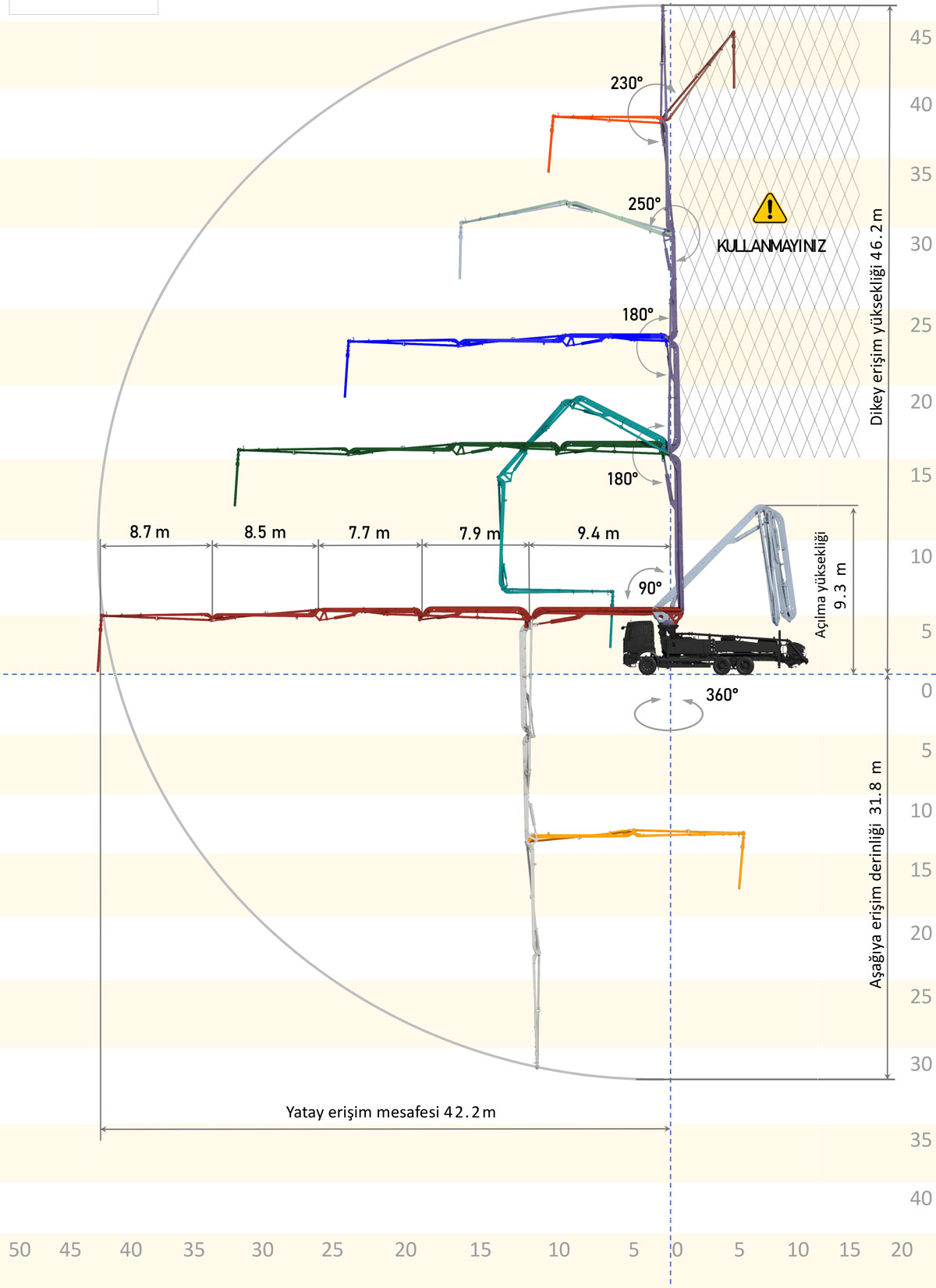

With a vertical reach of 46.2 m and a horizontal reach of 42.2 m, it offers a wide working range for large-scale construction sites. Its 160 m³/hour capacity and advanced stability systems deliver high performance.
| Pump Group | BST 47.16 5RZ |
| Conc. Output (Max) | 160 m³/h |
| Conc. Pressure (Max) | 85 Bar |
| Stroke | 26 Stroke/Min |
| Concrete Cylinder Dimensions | 250 mm x 2100 mm |
| Cooler | Electrical Driven / Hydraulic Driven |
| Boom Type | RZ |
| Sections | 5 |
| Boom Swing Time | 174 sec |
| Boom Swinging Angle | 360° |
| Concrete Pipe Diameter | 125 mm (DN 125) |
| Vertical Reach Height | 46.2 m |
| Horizontal Reach | 42.2 m |
| Opening Height | 9.3 m |
| Down Reach Depth | 31.8 m |
| End Hose | 3 m |
We offer our truck-mounted, truck mixer-mounted, stationary, and mini trailer concrete pumps, along with hydraulic placing boom solutions, under one roof. With our innovative engineering, strong manufacturing infrastructure, and export experience, we provide equipment that delivers reliability and high performance to every project.
