| Pump Group | BST 37.14H 4Z Optional | BST 37.16 4Z Standard |
|---|---|---|
| Conc. Output (max) (Rod Side) | 140 m³/h (183,11 yd³/h) | 160 m³/h (209,27 yd³/h) |
| Conc. Pressure (max) (Rod Side) | 85 bar (1232,82 psi) | 85 bar (1232,82 psi) |
| Stroke | 26 Stroke/min | 26 Stroke/min |
| Concrete Cylinder Dimensions | 230 mm x 2100 mm (9,05″) x (82,68″) | 250 mm x 2100 mm (9,84″) x (82,68″) |
| Remote Control | HBC | HBC |
| Oil Cooler | Electric / Hydraulic | Electric / Hydraulic |

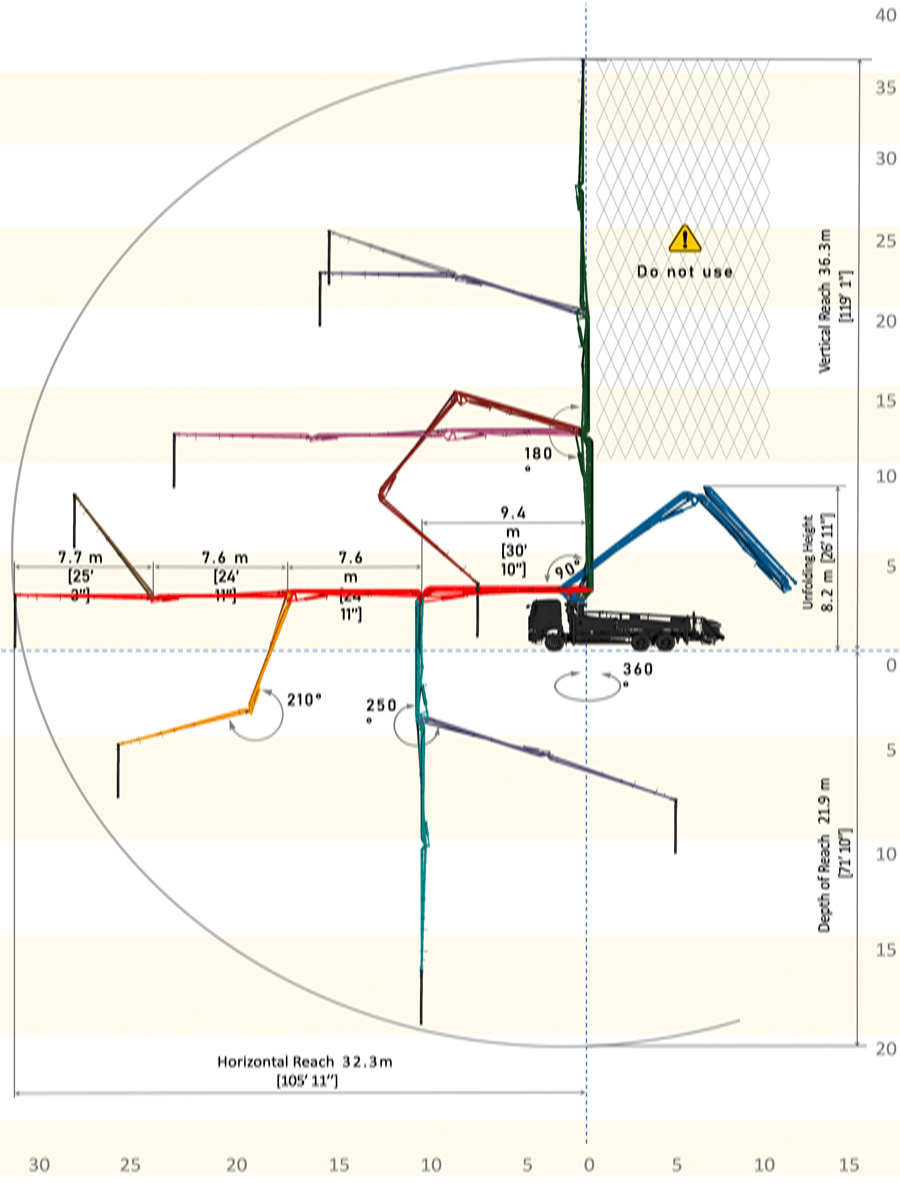

| Boom type | Z |
| Sections | 4 |
| Boom swing time | 135 sec |
| Boom swinging angle | 360° |
| Delivery line | 125 mm (4,92″) (DN 125) |
| Vertical reach | 36.3 m (119’1″) |
| Horizontal reach | 32.3 m (105’11”) |
| Unfolding height | 8.2 m (26’11”) |
| Depth of reach | 21.9 m (71’10”) |
| End hose | 3 m (9’10”) 4″ Diameter |
