H51 5RZ
h51

H51-5RZ

With a vertical reach of 50.2 m and a horizontal reach of 46.2 m, it offers a wide working range for large-scale construction sites. Its 140–160 m³/hour capacity and advanced stability systems deliver high performance.

DOWNLOAD BROCHURE
GET A QUOTE
Pump GroupBST 51.16H 5RZBST 51.20 5RZ
OptionalStandard
Conc. Output (max) (Rod Side)160 m³/h
(209,27 yd³/h)		200 m³/h
(261,58 yd³/h)
Conc. Pressure (max) (Rod Side)85 bar
(1232,82 psi)		85 bar
(1232,82 psi)
Stroke26 Stroke/min27 Stroke/min
Concrete Cylinder Dimensions250 mm x 2100 mm
(9,84″) x (82,68″)		250 mm x 2500 mm
(9,84″) x (98,42″)
Remote ControlHBCHBC
Oil CoolerElectric / HydraulicHydraulic
Boom typeRZ
Sections5
Boom swing time194 sec
Boom swinging angle360°
Delivery line125 mm (DN 125)

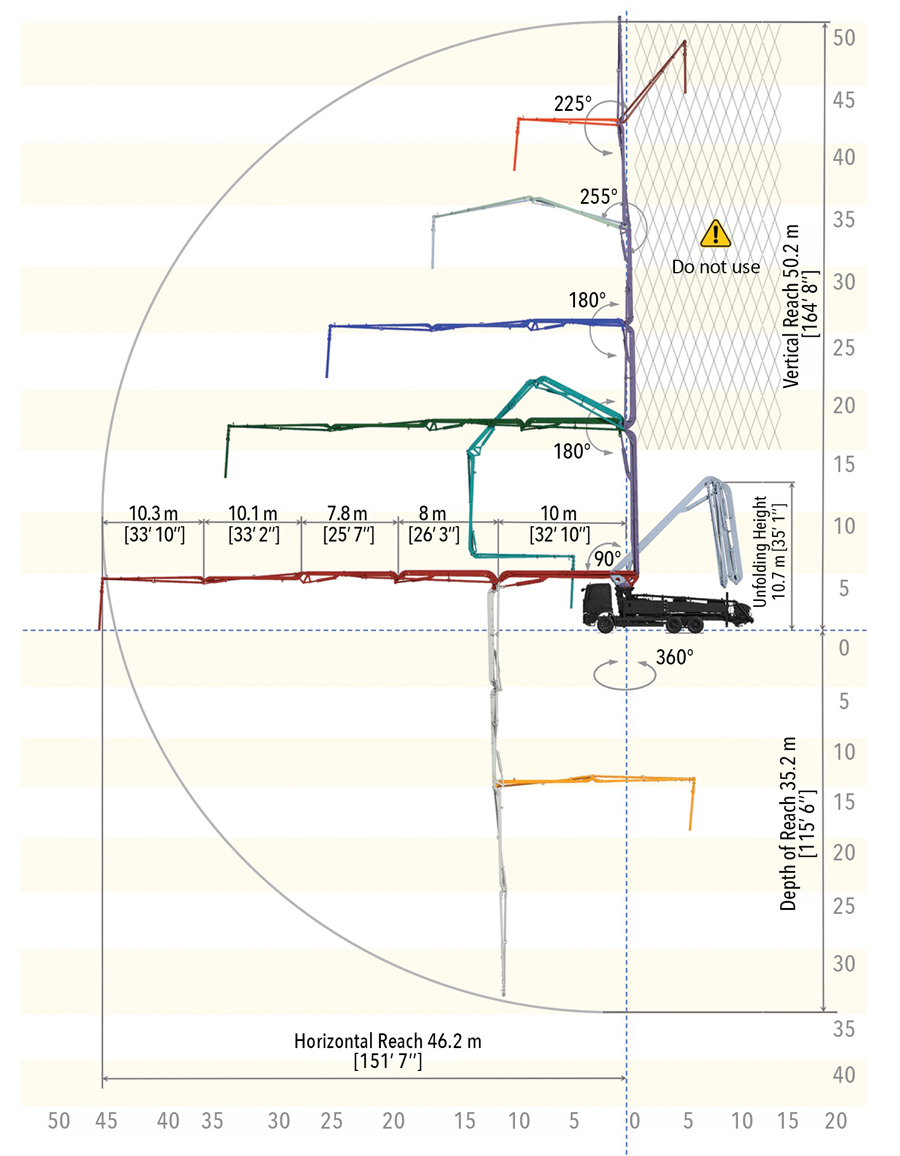

Vertical reach50.2 m (164’8″)
Horizontal reach46.2 m (151’7″)
Unfolding height10.7 m (35’1″)
Depth of reach35.2 m (115’6″)
End hose3 m (9’10”) 4″ Diameter
